Product description

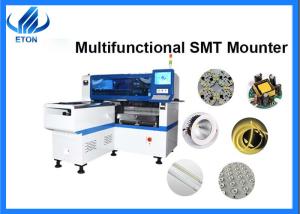

HT-E8S is single module magnetic linear motor multifunctional pck and place machine,. It has 2 PCS camera ,which is1 PCS MARK camera and 1 PCS flight recognition camera.MARK camera is make the PCB mounting program by scanning the mark point as the benchmark. Flight recognition camera is take photos of the components absorbed by the head, compare the previous mounting procedures with the mark camera, and calculate whether it is necessary to correct the components through compensation.
| Dimension | 2550*1650*1550mm |
| Weight | 1700kg |
| PCB length width | 1200*500mm 100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | pneumatic |
| Mounting mode | group picking and separately placing,separately picking and separately placing |
| NO.of camera | 2 PCS |
| Mounting precision | ±0.04mm |
| Mounting speed | CPH |
| NO.of feeders station | 64PCS |
Main feature
Magnetic linera motor multifunctional pick and place machine.
Vision alignment flight identification, MARK correction.
Auto-optimization after coordinates generated,etc
Application: Power driver.electric board.lens.DOB bulb.linear bulb.household appliance etc.
Non-stop material re-loading function.
Application:
led tube , power drive. Electric board. Lens. 0.5m,1.2m Flexible strip,DOB bulb.linear bulb. Household appliance etc.
Related machine:
Besides pick and place machine, we have many related machine. Apply to SMT automatic production line.
Services:
1.Supply you all the SMT processing related machines and devices with best prices
2.24 hours online service and technical support, solve your questions quickly.
3.We can provide SMT production line solution with you.
4.We can offer you online training and free installation after purchasing our machine.
This machine has many details that deserve your attention. Contact me and let me explain it to you
The company has been established for 11 years, and its products are exported to more than 30 countries
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
ETON purpose: to create value for customers and create benefits for the society.
ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
So many industry exhibitions have our presence. Next time, can you also visit our machines?
The following are the company's recent exhibitions
FAQ
1.What can you company offer us?
A:Free warranty within one year .
2.Can you provide a complete production line machine for us ?
A:Yes,our company can provide for your.
3.Why we choose you company?
A:ETON has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
4.Can we visit the workshop?
A:If you want to visit the workshop and it's inconvenient for you to come, we can let you visit through video.
5.What is your delivery date?
A:The delivery date is about 20 date upon the full payment.
