Machine main parameter
| PCB length width | Max:500*350mm min:50*50mm |
| mounting speed | 45000CPH Optimal speed |
| No. of head | 10 PCS |
| Feedering way | electric feeder with double motor |
| No. of Camera | Cylinder clamping,track width adjustable |
| Power&power consuption | 220V 50HZ 1.5kw |
| components | led chips,resistor,capacitor,IC,shaped components,etc |
| X,Y axis drive way | high-end magnetic linear motor |
Features of YT10S SMT pick and place machine
Head Flight Vision recognition Camera
Components with size less than 10mm high-speed and high-precision identification.
●Mark recognition:High-precision Mark recognition system,adopt
3 color illumination recognition. apply to any shape Mark and
LENS(Blu-ray scan),wider range of applications.
●Fixed flight vision camera:High-speed flight vision camera,quickly captures multiple head images at once, perform visual calibration of image position,alignment correction,adjustable light source

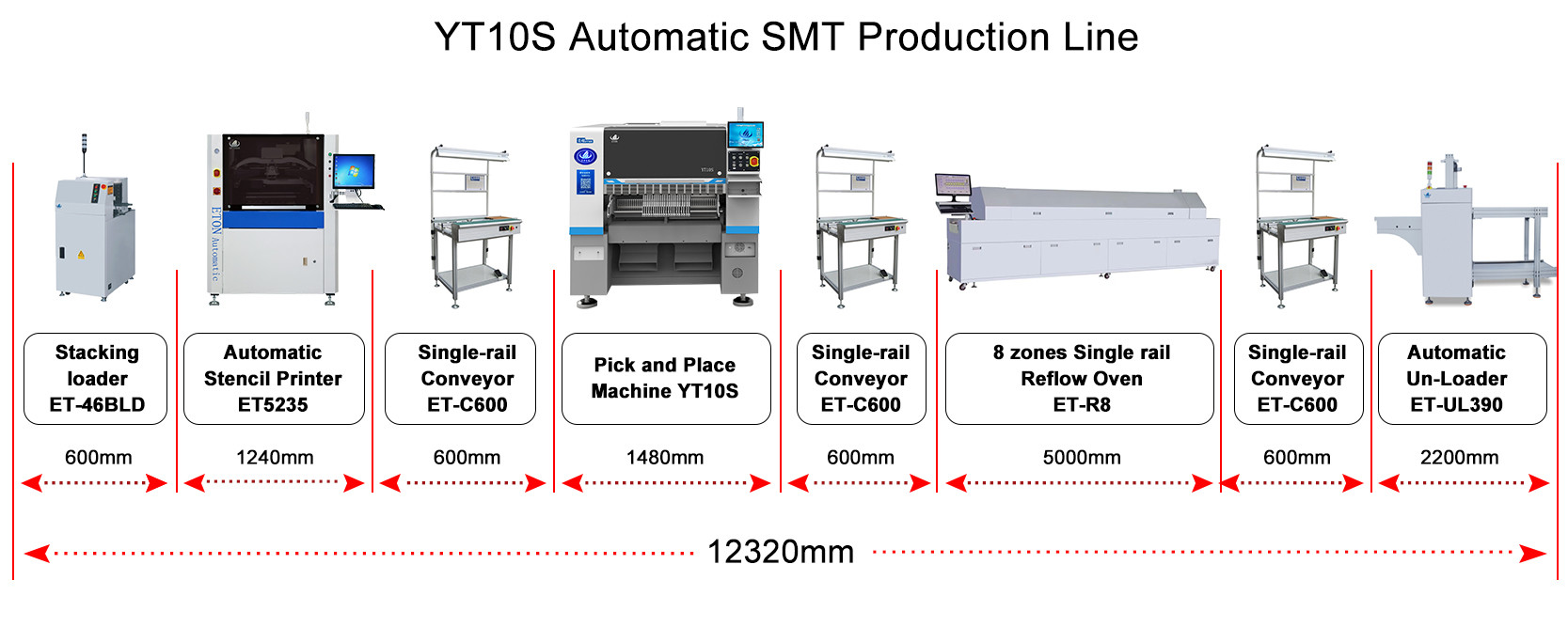

Production Process
| Step 1 | Loader Machine | Sending the FPCB roll to printer machine |
| Step 2 | Automatic Stencil Printer | Printing the solder paste on the flexible PCB |
| Step 3 | Buffer Stage | Buffer and transport the flexible PCB to pick and place machine |
| Step 4 | Pick and Place Machine | Mounting LED chips and components on flexible PCB |
| Step 5 | Transportation Belt Line | Transport the flexible PCB to reflow oven |
| Step 6 | Reflow Oven | Heating the solder paste with FPCB to welding the components on FPCB |
| Step 7 | Unloader Machine | Rewinding the finished Flexible strip |
Certificate of honor
ETON, a leader in advanced technology and innovation, spearheads rapid market transformation through its cutting-edge solutions.
The company has secured numerous intellectual property rights and earned prestigious accolades, including:
- Shenzhen High-Tech Enterprise Certification
- National High-Tech Enterprise Certification (China)
- Shenzhen Premier Brand
- 2015 LED Technology Innovation Award
- Fourth China LED Innovation First Prize (2015)
These recognitions underscore ETON’s commitment to driving technological excellence and reinforcing its position as an industry pioneer.
After sales service
After-service
■ Pre-Consultation: provides professional SMT solutions for the full line.
■ Factory Warranty: One-year warranty factory service.
■ Installation: On-site installation and commissioning, to ensure smooth production.
■ Technical Training: provides professional training from Level 1 to Level 3.
■ Technical Support: provides 7 * 24 technical support.
■ Software Upgrade: offers lifetime free software upgrades for all products Provide latest information about technology and equipment.
