High-speed mounter for flexible strip
(KEYWORD:High-speed mounter/High-production SMT machine/flexible strip Pick and Place Machine)
| Brand: | ETON | Warranty: | 1 year |
| Model: | HT-T7 | Origin: | CHINA |
| The Machine type:Pick and Place Machine |
Application:
HT-T7 suitable for any length of Flexible strip, such as 5m,10m,15m,20m,25m, 50m,etc. Also suitbale for BGA.
Features:
| high-speed mounter for flexible strip |
| Producing with 2-4 types of materials with high capacity |
| Available for 5m, 50m or any length of flexible strip. |
| 16 nozzles for each mounting module, part A or part B can be mounted separately or synchronously. |
| Exclusive patent technology: Group to pick and group to mount. |
| Calibration automatically, high precision, available for RGB. |
Technical parameter:
| HT-T7 Double module Technical Parameter |
| Dimension |
| Length | 2200mm |
| Width | 2910mm |
| Height | 1550mm |
| Total Weight | 1600kg |
| PCB |
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group to take and group to mount |
| Vision System |
| No. of camera | 5 Sets of imported camera Vision alignment, MARK correction |
| Mounting precision | ±0.02mm |
| Mounting Height | 〈15mm |
| Mounting Speed | 100000-150000CPH |
| Power | 220AC 50Hz |
| Power Consumption | 5KW |
| Conveyor Transmission | Belt drive |
| Transmission Speed | ＞500mm/sec |
| Air pressure | ＞5.0Kg/ CM² |
| Electrical control | Independent research and development by ETON |
| X.Y.Z Axis Driving | servo motor |
Details:
PCB carrying mechanism PCB length and width: 250mm*any length PCB clamping: Adjustable pressure pneumatic Conveyor Transmission: Belt drive Transmission | |
Two mounting modules

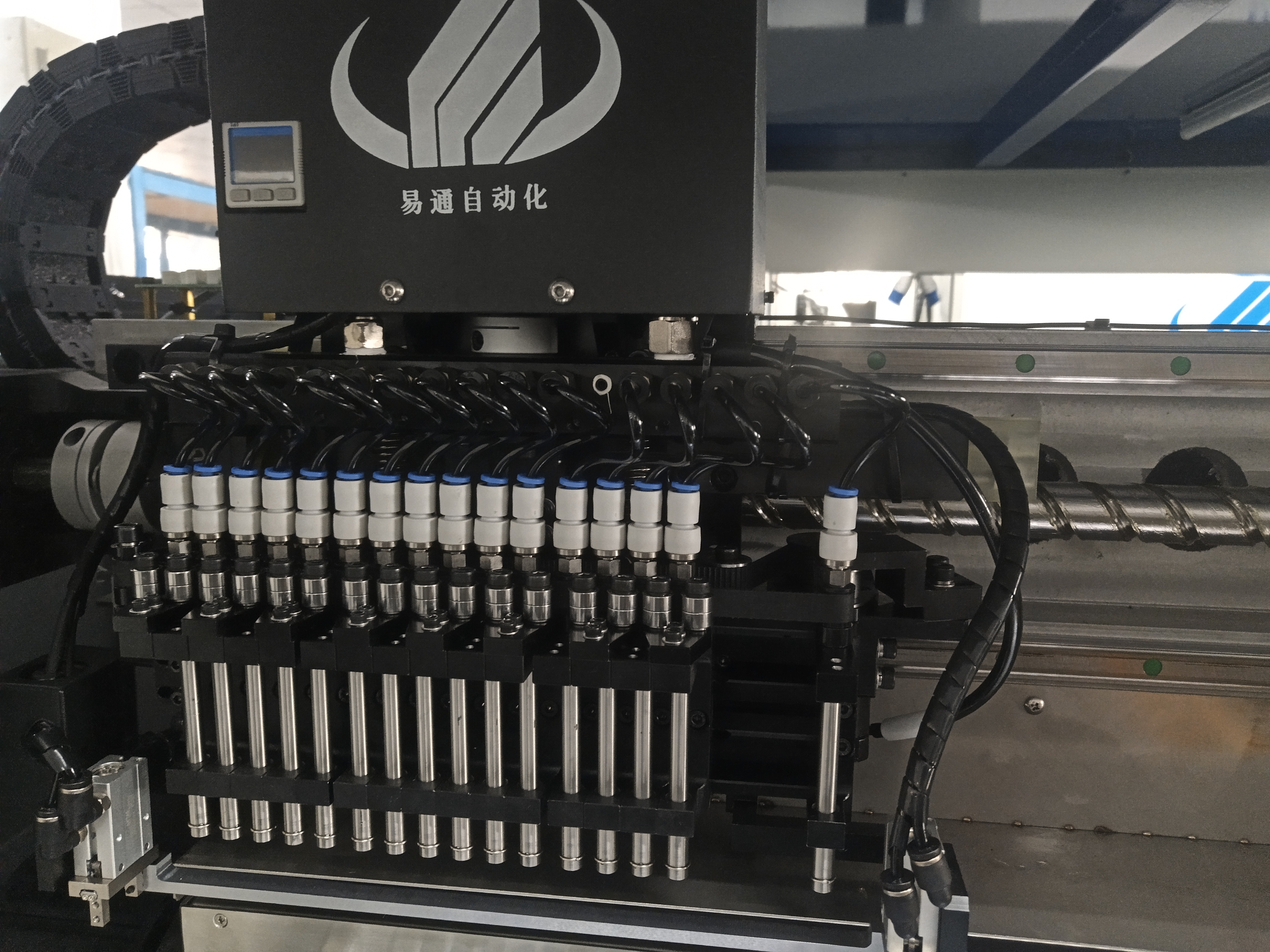

16 Nozzles and 32 Electric feeders for each mounting part
Attention:
1. Before using the Pick and Place machine, you must understand the basic parameters l of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
Logistics and delivery:
| Transport: | By sea/Train/Airplane |
| Packing: | Wooden box with vacuum package |
| Lead Time: | Four weeks after payment |
After sales service
- Maintenance period 1year
- Software and hardware lifetime maintenance
- Visit customers regularly and gather information
- Provide latest information about technology and equipment
Product Tags:
|
|
High Speed Mounter SMT Mounting Machine 0.02mm Precision For Flexible Strip Images
|
