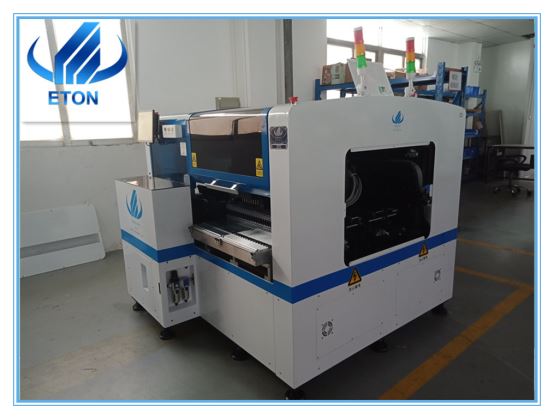

Double module magnetic linear motor multifunctional pick and place machine HT-E5D
Product description:
HT-E5D features 16 simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expandability and compatibility. with double module, can produce two types of products at the same time. The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.It's intelligent,can produce different types of LED light and electric board,such as tube,bulb,strip,panel,downlight,streetlight,power,driver.Its high precision,apply to LED chips,resistor,capacitor,IC,shaped components etc.
Advantages:
1. Used in any product, cost-effective.
2. All components can be placement.
3. Produced in China; it with of high quality; fast placement; 16 nozzles and electric feeders.
4. Professional after-sales service team provides overseas service.
chips,resistor,capacitor,IC,shaped components etc.
Technical parameter:
| Dimension | Length | 1650MM |
| | Width | 2000MM |
| | Height | 1550MM |
| | Total Weight | 2800KG |
PCB | PCB Size | Max:500*300mm Min:100*100mm |
| | PCB Thickness | 0.5-3mm |
| | PCB Clamping | Electric clamping + Adjustable pressure pneumatic |
| | Mounting Mode | group picking and separate placing,separate picking and separate placing. |
| Vision System |
No. of Camera | 4 set of imported camera |
| | | Vision for the Flight Identification,Mark correction. |
| | Mounting Precision | ±0.02mm |
| | Mounting Height | <36MM |
| | Mounting Speed | 80000CPH |
| | Components:Max:36mm,Min:LED 0402 | LED,resistor,capacitors,shaped components,etc. |
| | Components Space | 0.2mm |
| Feeding System | No. of Feeders | 60PCS |
| | No. of Nozzles | Dual mode , totally 16 |
| | Feeder Style | Use Electric Feeders |
Company Introduction:
ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption”in the world,meanwhile ETON also the largest high-tech manufacturer in Chine with strong capability of design,R&D,manufacturing,sales&service.ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies In 2018,HT-E8T/HT-E9T(ETON thee generation 5st multi-function machine ) HT-D12 ( Automatic glue dispenser machine ) was completed R&D and begin selling;

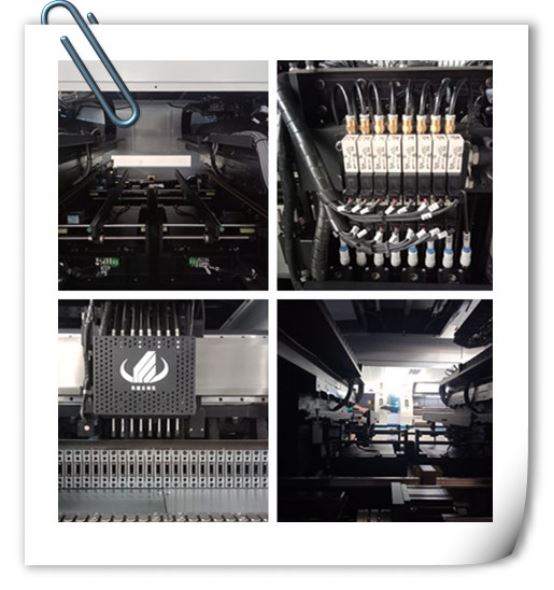

Detail:

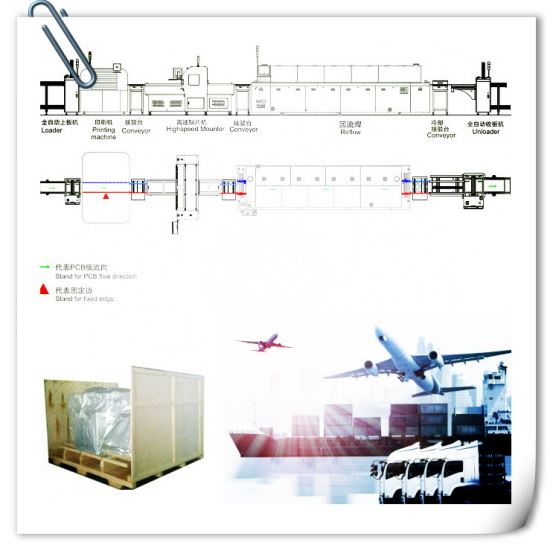

Production solution & Parking & Transportation :
Our packing method is vacuum wooden case packing.
Supporting sea, air and land transportation.
Exhibition & Certification:
We hold exhibitions at home and abroad every year,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights,moreover.
FQA:
1.How is your company?
Our company ETON is the largest manufacturer of high speed pick and place machine.
We start from 2011,around 8 years.
In the market,around 80% of large LED factory are our client.
2.How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
3.Who is your client?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
4.How is the warranty?
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
5.How is the breakdown rate of machine?
Our machine is very stable,the breakdown rate is less than 0.001.
6. Is your software interface in English?
English interface and Chinese interface are both aviable.
7.Why your price is so high?
Cause our machine quality,accuracy and performance is better,different but better.
8.Machine is easy to operate?
Machine is easy to operate,usually 3 to 5 days training of operating is enough.
|
|
