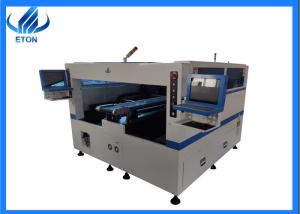

Led Light Assembly Line 6KW 200000CPH SMT Mounting Machine

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

Led Light Assembly Line 6KW 200000CPH SMT Mounting Machine

Brand Name : ETON

Model Number : HT-T9

Place of Origin : CHINA

MOQ : 1 set

Price : EXW USD 95000/sets

Payment Terms : T/T

Supply Ability : 50 sets per mouth

Delivery Time : 30 days after deposit

Packaging Details : Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

name : pick and place machine

components : LED 3014/3020/3528/5050 resistor capacitors

feeders : 64 PCS

nozzles : 64 PCS

speed : 200000CPH

PCB size : 250mm*any length

Contact Now

High Quality Led Light Assembly Line SMT Mounting Machine pick and place machine

Features
Producing with 4 types of materials with high capacity,available for 5m,50m or any length of flexible strip and roll to roll.
Calibration automatically,high precision,available for RGB.
Exclusive patent technology :group to pick and group to mount.

Dual arm four module,17 nozzles for each mounting part ,part A or part B can be mounted separatly or synchronously.

Exclusive patent technology :group to pick and group to mount.

Technical parameter

HT-T9
PCB PCB length width 250mm*any length
PCB thickness 0.5~1.5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
O.S. system Windows 7
software R&D independently
display LED monitor
Input device Keyboard , mouse

Vision

system

No.of camera

5 sets of imported camera

Vision alignment,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <15mm
Mounting speed 100000~150000CPH
Components LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
Components space 0.2mm
No.of feeders station 64PCS
No.of nozzles 64PCS
Power 380AC 50HZ
Power consumption 6KW
Conveyor transmission Belt drive
Transmission speed >500mm/sec
Transmission direction Single (left to right or right or left)
Transmission mode Auto online drive
Position mode Optical
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
Motion control card module 1set Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way Electric feeder with double motor

Product presentation
1,Soft lamp tape special high-speed mounter
2,High Precision: Five sets of imported cameras are equipped with visual alignment, mark correction technology and optical positioning technology to accurately identify the position of PCB board and quickly and accurately mount components.
3,High Speed: Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 200000 CPH, 68 feeders station and 68 nozzles. It can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.
4,Strong durability: The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.
5,Simple operation: Windows 7 system can be used to switch the Chinese-English interface, usually 3 to 5 days training of operation is enough.
6,Components:LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers.


Remarks:

1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

2.Delivery time: 30 days after deposit.

3.Warranty: 1 year.(including spare parts)


Company Information
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word.ETON has created superior value for customers as the outstanding worldwide brand of high speed SMT machine with good reputation .looking forward to the future ,we believe that ETON will seek to better achievement in SMT field and make greater contributions to the industry and society.

Led Light Assembly Line 6KW 200000CPH SMT Mounting Machine

Our Partners
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
