0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9

Name: 002mm 6KW 200K CPH LED Strip Chip Mounter HTF9
Brand: Eton
Price: 82000 USD

Quality 0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9 wholesale

Brand Name : Eton

Model Number : HT-F9

Certification : CE CCC ISO

Place of Origin : China

MOQ : 1 unit

Price : USD 82000-90000

Payment Terms : T/T

Supply Ability : 50 sets

Delivery Time : 30 work days

Packaging Details : Wooden box package

Length : 2700MM

Width : 2300MM

Height : 1550MM

Weight : 1700KG

Power : 380AC 50Hz

Power Consumption : 6KW

Mounting precision : 0.02mm

Speed : 200K CPH

Contact Now

LED Strip Light Chip Mounter Machine HT-F9 SMT LED Production Line

Machines Window

In order to meet the rapid development of the lighting industry market demand, research and development a high speed placement machine HT-F9. HT-F9 is a high tech special pick and place machine of Eton company. This machine designed for LED tube, panel, strip PCB boards. Using the Eton first group taking and group picking patent technology, a very high speed LED pick and place machine.

HT-F9 Features

w High-end magnetic linear motor + Panasonic Servo Motor

w 64 heads, 64 feeder stations

w Group to pick and group to mount

w Vision alignment, Mark Correction

w Capacity can Reach 200000 CPH

HT-F9 Main parameters

Dimension	LWH 270022851550MM
Weight	1400kg
Mounting Heads	64 Heads
No. of Feeder Stations	64 Stations
Components	LED, capacitors, resistors, bridge rectifiers.
Mounting Speed	200000 CPH
PCB Size	Max:1200330MM Min:100100MM
Power	380V 50Hz
X.Y Axis Driving	High-end magnetic linear motor + Panasonic servo motor

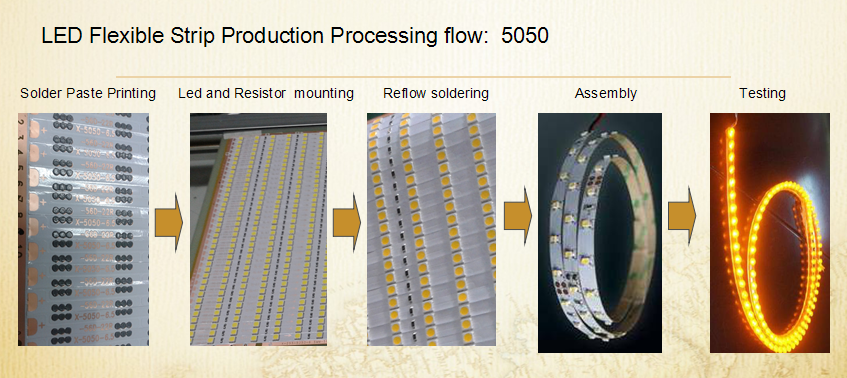

The process of LED strip light making

0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9
