Two mounting modules automatic pick and place machine hot selling led light making equipment
Introducing machine F7S
The machine is dual-purpose professional high-speed mounter,2-4 types of capacity reach 170000 CPH
Feature of machine
- High-end magnetic linear motor+servo motor
- Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip
- Producing with 2-4 types of materials with high capacity
- Available for board with any proportion of LED chip and resistor.
Machine Parameter
| Dimension | 2700*2450*1530mm |
| Total weight | 1400kg |
| PCB | size | Max:1200*330mm Min:50*50mm |
| Thickness | 0.5-5mm |
| Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separate placing,separate picking and separate placing. |
| O.S. | System | Windows 7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input device | Keyboard,mouse |
| Vision system | camera | 5 PCS digital camera |
| Mounting precision | ±0.02mm |
| Mounting element height | ≤5mm |
| Mounting speed | 150000-170000 CPH |
| Components | LED3014/3020/3528/5050 and capacitor,resistors,bridge rectifiers,etc. |
| Components space | 0.2mm |
| Feeder station | 68 PCS |
| Nozzles | 34 PCS |

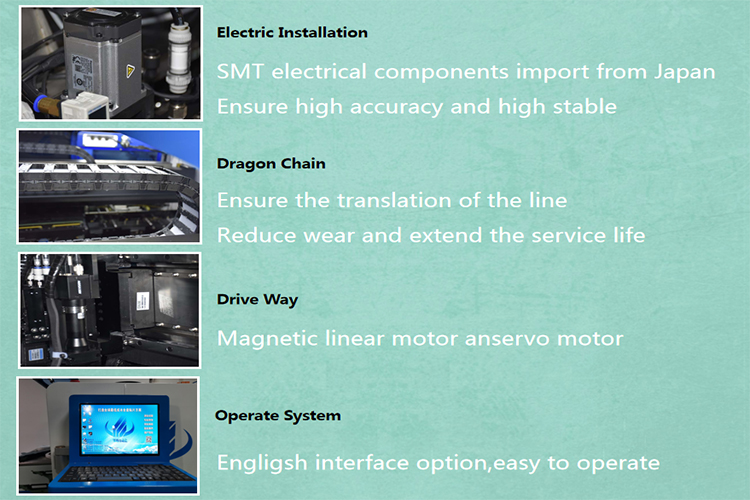

Machine details
| High capacity | - High-speed magnetic linear motor pick and place machine in led light SMT production line
- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 1700000 CPH
|
| High precision | - Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
| Power functions | - Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
| Operation&maintenance | - Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Components&products
Company profile
Our company is a leading manufacturer of automatic high-speed pick and place machine focusing on High efficiency Low consumption.ETON with more than 10 years experience in SMT machine field.And we have rated many awed,like Shenzhen high-tech enterprise,China high-tech enterprise,Industry Special Contribution Aware,etc.

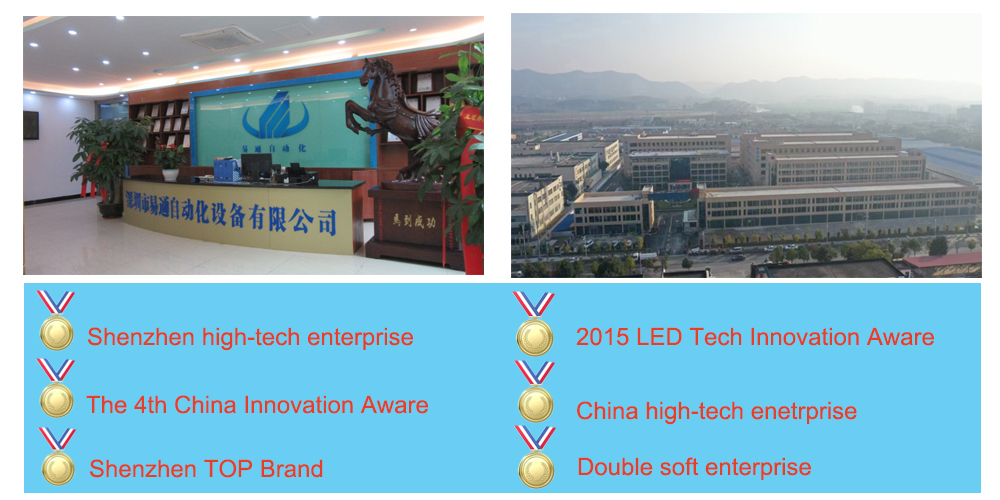

Our industrial park
The factory belonging to our company has been successfully built, there is 50000 SQM,equipped with advanced processing and manufacturing centers, scientific research buildings, exhibition halls, etc., to ensure quality from the source and further standardize production processes.
Our service
- If you buy our machine,we will arrange engineers to install,debug and training you for free,until you learn to operate the machine.
- We have office in Mumbai and New Delhi,service is very convenient
- Besides India,we also have local engineers in Egypt,Turkey,can provide you with timely service.
- Chinese engineer provide online service
Introducing Machine details
Transportation& Package
By sea
The advantages of sea transportation are convenience, cheapness, and strong carrying capacity
By railway
The advantages of shipping are economical and affordable, with large transportation capacity, which is more suitable for inland countries.
By air
The advantage of air transportation is that it is convenient and fast, which is more suitable for urgent items.

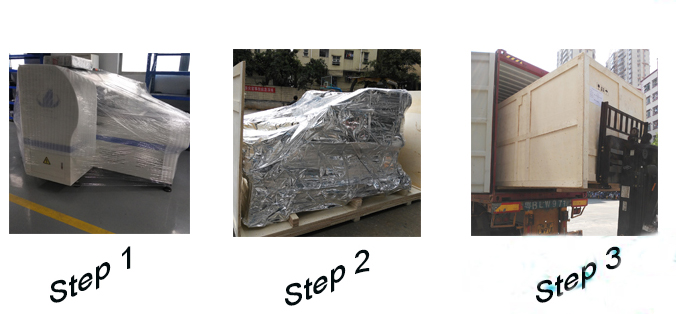

We use vacuum wooden box packaging
Why choose us?
FAQ:
If I have no experience,The machine is easy to use?
Yes,our machine is designed to use easily,usually 3 to 5 days to learn how to operate.
How is the breakdown rate of machine?
Our machine is very stable,the breakdown rate is less than 0.001;.
Is your software interface in English?
English interface and Chinese interface are both available.
Why your price is so high?
Because the quality, accuracy and performance of our machines are relatively good,different but better.
