smt line equipment LED light making ultra-speed pick and place machine with 68 heads
Introduction
Pick and place machine: also known as "mounting machine", "Surface Mount System" (Surface Mount System), in the production line, it is configured after the dispenser or screen printing machine, by moving the placement head to mount the surface A device where components are accurately placed on PCB pads.
Features
| Exclusive | Exclusive patent: group to take and group to mount |
| Intelligent | Automatic optimization function and non-stop automatic refueling function |
| High efficiency | 68 heads, dual arm four module, Can produce 4 different materials at the same time |
Technical parameter

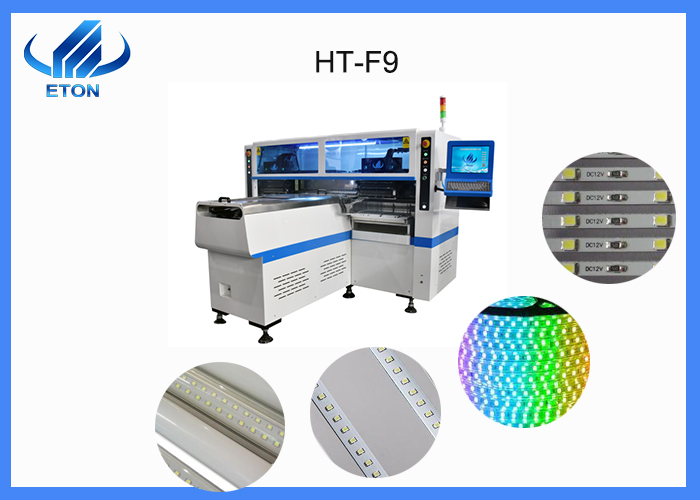

| HT-F9 ultra high-speed pick and place machine |
| Dimension | Length* Width* Height | 2700mm*2300mm *1550mm |
| Total weight | 1700kg |
| PCB | Size | Max:1200*330mm Min:100*100mm |
| Thickness | 0.5-5mm |
| Clamping | Adjustable pressure pneumatic |
| | Mounting mode | Group to take and group to mount |
| O.S. | System | Windows 7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Vision System | No. of camera | 5PCS(Digital camera) |
| | Vision alignment, Mark correction |
| | Mounting precision | +0.02mm( repeat precision) |
| | Mounting speed | 200000-250000CPH |
| | Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc |
| | No. of feeders station | 68PCS |
| | No. of nozzles | 68PCS |
| | XYZ Axis drive way | High-end magnetic linear motor + servo motor |
| | Feeding way | Electric feeder with double motor |
Application

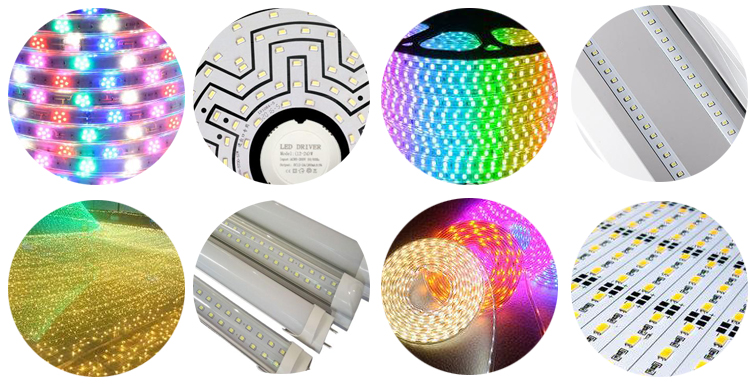

It can be applied to the electronics industry, LED industry, power drive industry, automotive industry, household appliances industry, etc.

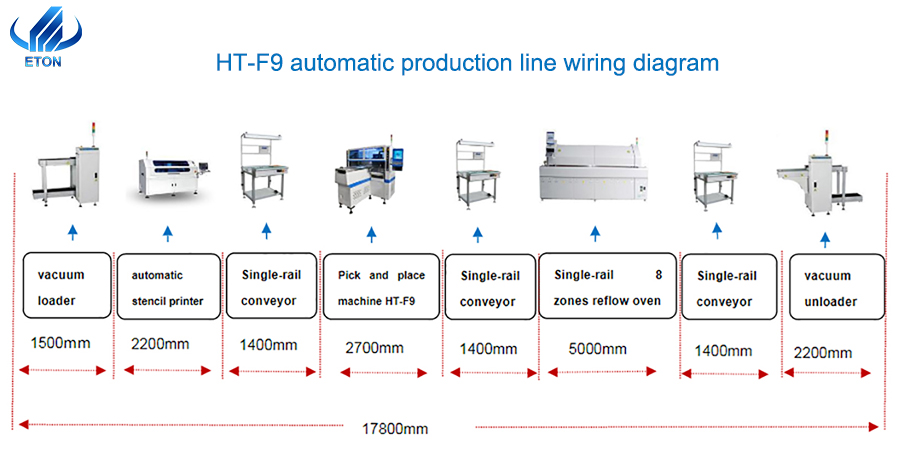

What equipment is needed for the production line?
FAQ
Do you have any customers in India? How many machines are there in India?
Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.
Can I visit the production site of your machines in India?
I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.
Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
What is your machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
