LED 5050 chip making eton pick and place machine with 250000cph
Machines Introduction:

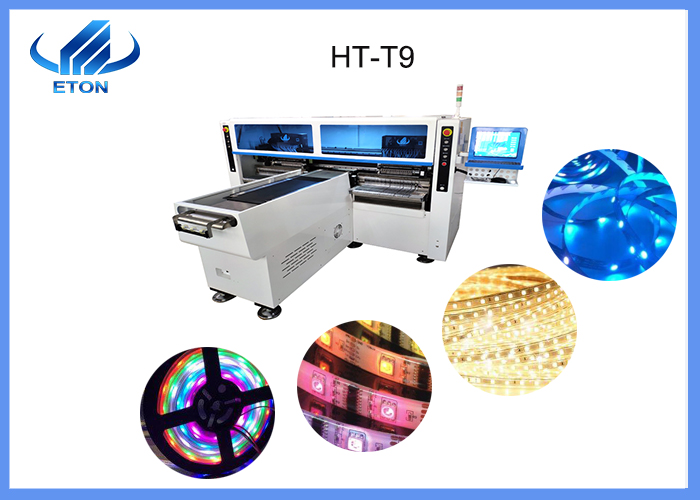

HT-T9 SMT pick and place machine is for 5/10/15/25/50/100m and any length of flexible strip.

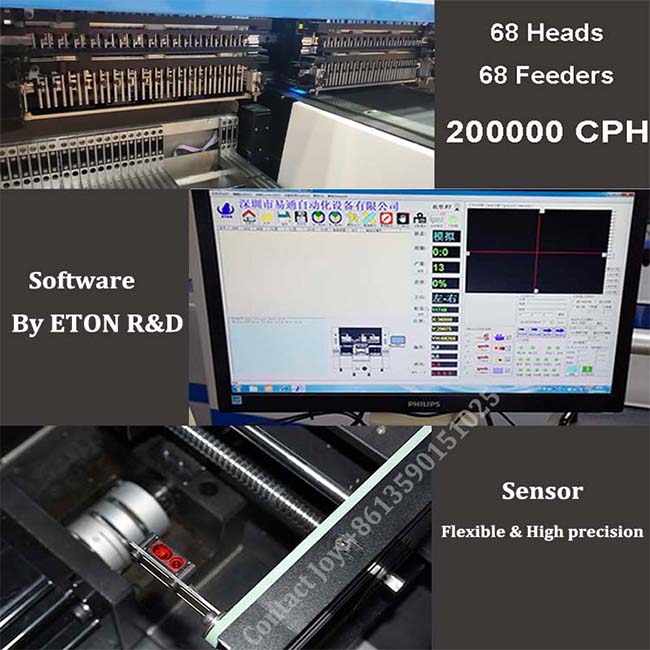

HT-T9 pick and place machine with 5pcs camera, whichsend the signal to the machine host to show it through the display, then with calibtation automatically
Machine Features:
1.High Accuracy Magnetic Linear Motor + Panasonic Servo Motor.
2.68 heads(Dual Arm four module , 17 nozzles for each mounting part. Part A or part B can be mounted),which optimum mounting speed reached250000cph.
3. 68 feeder stations
4.Vision alignment, Mark correction.Calibration automatically, high precision, available for RGB.
5.Components:LED3014,3020,3528,5050 and resistor,capacitors,bridge rectifiers etc.
Pick and place machine parameter:
| Model | HT-T9 |
| Dimension(L*W*H) | 3100*2300*1550mm |
| Weight | 1700kg |
| PCB length width | 250mm*any length |
| PCB thickness | 0.5~1.5mm |
| Mounting mode | Group to picking and group to mount |
| Mounting height | ≤5mm |
| No.of camera | 5 PCS |
| Vision alignment, Mark correction |
| Components | LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
| Components space | 0.5mm |
| Mounting mode | Group to picking and group to mount |
| Power consumption | 6KW |
| Mounting speed | 200000~250000CPH |
| No. Of feeders station | 68 PCS |
| No. Of head | 68 PCS |
| X,Y Axis drive way | High-end magnetic linear motor+Servo motor |
| Feeding way | Electric feeder with double motor |

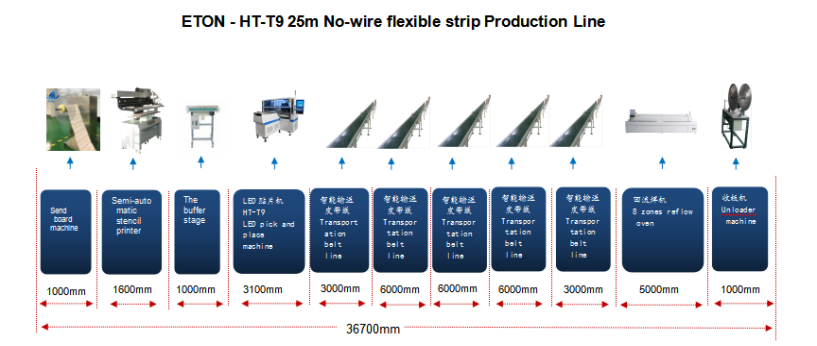

SMT Production line:
We have more than 15 years of experience in the field of SMT, we can not only provide you with placement machines, but also provide you with complete line solutions, including printing machines, conveyor, translational conveyor, reflow oven, stacking loader, etc.
After-services:
FAQ:
1..Do you have overseas engineers?
Yes, of course. We have local engineers in India, If you have any problem about machine, we can send India engineer to solve the problem for you.
2.How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
3.Which countries are your machines mainly sold to?
Our products exported to more than 20 countries and regions, including Turkey, Egypt, India, Pakistan, South Africa, Brazil etc.
4.What’s the terms of payment?
T/T is OK.30% Down payment in advance,70% payment before delivery.
