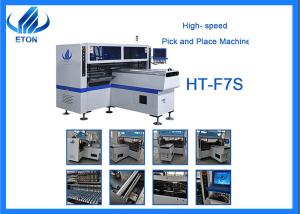

68 Feeders station Automatic and high speed led tube making SMT pick and place machine
The feature of HT-F7S
1.dual-arm can mount 2-4 different types of components at the same time
2.Optimum production capacity :180000 CPH.
3.mainly for linear products, like LED tube, LED flexible strip, LED display and so on.
4.two mounting module, each mounting module has 17 nozzles and can be mounted separately or synchronously.
5.high precision, automatic calibration function and can be used for RGB mounting.
6.group picking and group mounting.
The main parameter
| HT-F7S |
| Dimension |
| Total weight: 1700kg |
Size: 2700*2300*1550mm |
| PCB |
| PCB length width |
Max:1200*330mm Min:100*100mm |
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and group placing |
| Vision system |
| No. Of camera |
5 sets of digital camera |
| Mounting precision |
±0.02mm |
| Mounting height |
≤5mm |
| Power consumption |
6kw |
| X,Y,Z Axis drive way |
High-end magnetic linear motor and servo motor |
| Feeding system |
| No. Of feeders station |
68 PCS |
| No. Of head |
34PCS |
| Feeding way |
Electric feeder with double motor |
The other pick and place machine and peripheral automatic equipment
ETON supply whole SMT production line machine, mainly included : Loader, Automatic stencil printer, Semi-automatic stencil printer, Conveyor, Pick and place machine, Reflow oven machine, Un-loader machine, etc.
The package and transport
The products support the way of sea, air and land delivery. In order to ensuring the machine in good condition when arrive the equipment reaches the customer factory, we use the vacuum packaging and wooden box packaging.
Step 1: Wrap the machine in foam cotton and stretch film to protect the outside of the machine
Step 2: Vacuum packaging, put the desiccant into a vacuum bag to prevent moisture, and use straps to fix the machine;
Step 3: professional wooden box packaging.
FAQ:
1.Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
2.What about the mode of transport?
Both sea, air and road are OK.
3.How about your company?
We have more than 11 years experience and have obtained a number of intellectual property technologies.Our products are exported to more than 20 countries and regions.
4.What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
