High Speed Multifunctional Double Module 40 Nozzles Pick And Place Machine
Machine main features
- Adopt High speed multi modular head, apply to ultra small chip 0201~10*10mm large chip, widercomponent range;
- Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
- Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach120000 CPH;
- Brand new self-developed high precision placement head;
- Combine highaccuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
- Docking Cart: Double side docking cart slot 32 PCS, tape reel package:64 PCS(Single docking cart slot 16 PCS, tape reel package:32 PCS)
- Smart Double-Head tape feeder: Support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, accurate and high-speed feeding;
- The placement head adopt independent vacuum detection, improve placement performance;
- Off-line programming, save time of changeover cycle;
- Software AI intelligent learning function and automatic optimization function.
- Two gantry, 20 spindles*2 Gantry, total 40 spindles;
- Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.
Machine main parameter
| Model | YT-402 |
| PCB size | Max size: 500*450 mm(Single side) 500*300(Double side) Min size: 50*50 mm |
| PCB thickness | 0.5-4.5 mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| Rail | 2 rail, 2 gantries(Rail 1,4 are fixed rail) |
| Software | R&D independently |
| Production management MES system | Customized (Option) |
| Off-line programming | Available |
| Camera | Head flight vision recognition component Vision alignment + Mark correction |
| Repeat precision | ±0.02 mm |
| Mounting height | ≦6 mm |
| Position mode | Optical |
| Optimal speed | 120000 CPH |
| Component range | Min 0201~10 mm packages and IC etc. |
| Position mode | Optical |
| No.of heads | Double side:40 PCS Single side:20 PCS |
| Feeding way | Intelligent double head feeder |
| X,Y,Z Axis drive way | High-end magnetic linear motor + Servo motor |

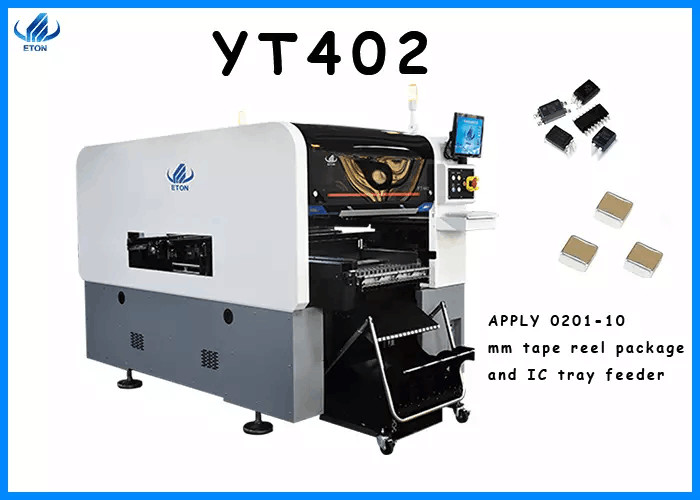

Machine Picture
Application products
It an mount high-precision products, such as displays, drivers, circuit boards etc.
