Dual system dual module 4 sets camera capacity 80000 CPH RT-2 pick and place machine

Name: Dual system dual module 4 sets camera capacity 80000 CPH RT2 pick and place machine
Brand: ETON
Price: 41000 USD

Quality Dual system dual module 4 sets camera capacity 80000 CPH RT-2 pick and place machine wholesale

Brand Name : ETON

Model Number : RT-2

Certification : CCC, CE

Place of Origin : China

MOQ : 1 SET

Price : USD 41000-61000

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 30 days after deposit

Packaging Details : wooden box with vacuum package

name : pick and place machine

PCB clamping : Pneumatic

No. of feeders station : 64 PCS

No. of head : 20 PCS

Dimension : 1200*1930*1500MM

Total weight : 2500 KG

Mounting mode : group picking and separately placing, separately picking and separately placing

mounting speed : 80000 CPH

Power : AC 380 V

Power consumption : 6KW

Contact Now

Dual system dual module 4 sets camera capacity 80000 CPH RT-2 pick and place machine

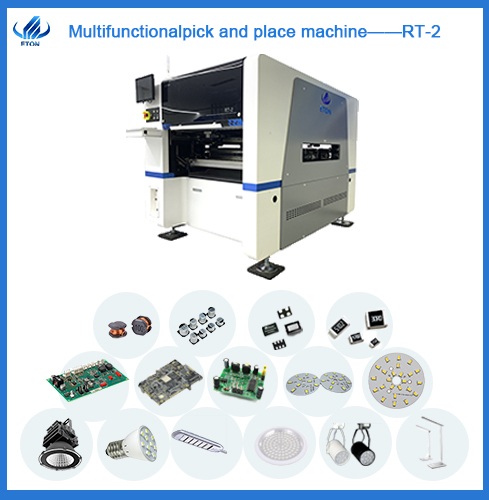

The Feature of RT-2

RT-2 is Dual system and dual module magnetic linear motor multifunctional pick and place machine.

The power consumption of RT-2 is 6KW.

RT-2 is able to produce two different products at the same time.

The machine of RT-2 has 4sets of camera: vision alignment and Mark correction.

The Optimum capacity will reach 80000CPH.

RT-2 is the Enhanced version of RT-1.

The Completed RT-2 SMT Production Line

Solder paste printer machine: Put the solder paste on the PCB board

Double-rail Conveyor: transmission the PCB board to pick and place machine

Pick and place machine RT-2: mounting the components on the PCB board

Reflow oven: heating the PCB board

Dual system dual module 4 sets camera capacity 80000 CPH RT-2 pick and place machine

Technical parameter

Module	RT-2
Length	1200mm
Width	1930mm
Height	1500mm
Total weight	2500kg
PCB Length width	Double side, double track: Max: 450300mm Min: 8080mm
PCB Length width	Single side, single track: Max: 450540mm Min: 8080mm
PCB Thickness	0.1-6mm ( If <0.6mm need jig)
System	Windows 7
Display	Touch screen monitor
Input device	Keyboard, mouse
Transmission speed	1000mm/sec
Mounting precision	±0.04mm
Transmission direction	Single( left→right or right →left )
No. Of feeders station	64PCS
No. Of head	20PCS
Operating environment	23℃±3℃
Power consumption	6KW
X, Y, Z Axis drive way	High-end magnetic linear motor and serve motor
Feeding way	Electric feeder with double motor
Mounting components	capacitors, resistors, IC, crystal, shaped component etc
Applications	LED bulb, mining light, street light, panel light, table light, ceiling light etc.

Dual system dual module 4 sets camera capacity 80000 CPH RT-2 pick and place machine

Company introduction

ETON is the leading manufacturer of global photoelectric high speed pick and place machine, the products are exported to more than 20 countries and regions, including South Africa, Egypt, Turkey, Russia, Brazil, India and so on. ETON is not only in the leading position in the field of photoelectric high speed placement machines, but also has made breakthrough progress in the field of SMT high speed placement machines. ETON has obtained a number of intellectual property technologies.

Shenzhen high-tech enterprise	ShenZhen TOP Broad
China high-tech enterprise	National high-tech enterprise
The 4th China Innovation Award	2015 LED tech Innovation Award

Dual system dual module 4 sets camera capacity 80000 CPH RT-2 pick and place machine
