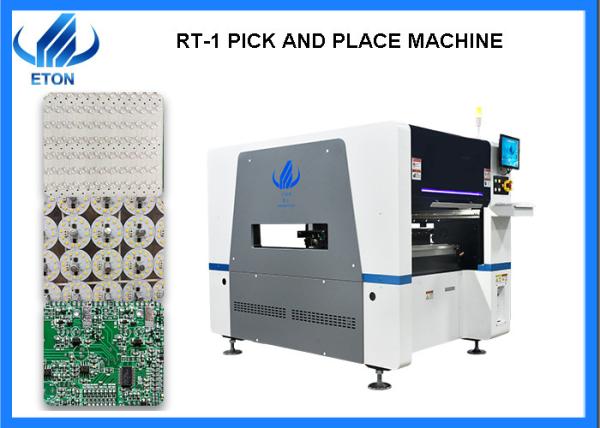

High quality capacity reach 40000 cph mounting for led products SMT mounter machine
Machine main parameter
| Model | RT-1 |
| No. Of camera | 2 PCS |
| PCB length width | Max: 450*350mm (Non-omnidirectional 610*350mm) Min: 80*80mm |
| PCB thickness | 0.1-6mm (if <0.6mm need jig) |
| PCB clamping | pneumatic |
| Components space | 0.2mm |
| Mounting precision | ±0.04mm |
| Mounting speed | 40000 CPH |
| No. of head | 10 PCS |
Machine main features
- Magnetic linear motor multifunctional pick and place machine
- Mounting components: LED chip, capacitors, resistors, IC, shaped components, etc.
- Electronic feeder feeding system
- Vision alignment flight identification, Mark correction
- Auto-optimization after coordinates generated,etc
Our advantages
- Have been in SMT line for more than 10 years experiences.
- Have a 50000 square meters industrial park in Jiangxi province.
- Provide a whole production line for SMT machine.
- Free installation and teach with professional engineers in some countries, such as India and Egypt.
Machine application
RT-1 multifunctional SMT machine, taking group picking and separately placing, and separately picking and separately placing that can mount high components, and RT-1 can mount various products in LED market, as led bulb, led tube, LED street light, power driver and circuit board etc.
Packages
Our package of the machine is taking vacuum package with wooden boxes, also the accessories of the feeders and other spare parts use cartons to equip with the wooden boxes with the machine.
Here is the main procedures of our packing:
Our Exhibitions
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
FAQ
Q1. Can you arrange your engineers to our country for a training of the machine?
A1. Yes, our clients enjoy a free training for the machine as installation, maintenance etc.
Q2. How long is the machine maintenance period, whether it is free?
A2. The maintenance period of our machine is 1 year and its free for our clients.
Q3.How can I get an optimal line for our product?
A3. As the needs of the whole line solution, we will provide our professional suggestion and a whole line production for our clients, as to provide a suitable plant layout.
Q4. What is the payment term?
A4. We use T//T as the payment term.
Q5.How about the actual speed of your machine?
A5. For the actual speed of the machine which is constrained by many factors, and related to the number of the components, the time to send PCB board to receive the board, etc. And is decide for the actual products and needs of our clients.
|
|
