Digital camera SMT Mounting Machine LED Strip Chip Pick And Place Machine

Brand Name : ETON

Model Number : HT-T9

Certification : CCC/CE/SIRA

Place of Origin : CHINA

MOQ : 1 Unit/Units

Price : USD 51000-76500 Unit/Units

Payment Terms : L/C, T/T

Supply Ability : 50 Unit/UNits per month

Delivery Time : 15-30days

Packaging Details : Vacuum packing in wooden case

Dimension : 3100*2300*1550mm

PCB Size : 250mm*any length

PCB thickness : 0.5-1.5mm

PCB clamping : Vacuum absorption, cylinder splint,adjustable track width

Mounting mode : Group to pick and group to mount

No.of camera : 5PCS（Digital camera)

Repeat mounting precision : ±0.02mm(repeat precision)

mounting height : ≤5mm

components : LED 3014,3020,3528,5050 and capacitors, resistor,brigde rectifiers.etc.

XYZ Axis drive way : High-end magnetic linear motor + servo motor

Contact Now

Led strip of led tv making machine pick & place led strip chip making machine

Product Description

1.Producing with 4 types materials at the same time with high capacity. avaible for 5M,50M or any length flexible strip and Roll to Roll

2.Dual arm four module, 17 nozzles for each mounting part. part A or part B can be separately or synchronously. 3.Calibration automatically, high precision, available for RGB.

4.Exclusive patent technology: Group to pick and group to mount.
Technical parameter
Model
HT-T9
Dimension
length
3100mm
width
2300mm
height
1550mm
total weight
1700kg
PCB
PCB length width
250mm*any length
PCB thickness
0.5-1.5mm
PCB clamping
Vacuum absorption, cylinder splint,adjustable track width
Mounting mode
group to pick and group to mount
O.S
system
windows 7
software
R&D independently
display
touch screen monitor
input device
keyboard, mouse
Vision system
No.of camera
5PCS(Digital camera)
vision alignment, mark correction
repeat mounting precision
±0.02mm(repeat precision)
mounting height
≤5mm
mounting speed
200000-250000CPH
components
LED 3014,3020,3528,5050 and capacitors, resistor,brigde rectifiers.etc.
components space
0.5mm
No.of feeders station
68PCS
No.of head
68PCS
power
380AC 50Hz
power consumption
6kw
operating enviroment
23℃±3℃
conveyor transmission
MAX length: 1000mm
transmission speed
＞500mm/sec
transmission direction
single(left-right or right-left)
transmission mode
online drive
positioning way
optical
air supply
0.4-0.6mpa(4-6kgf/cm²)150N/min
electrical control
independently research and development by ETON
motion control card module 1 set
independently research and development by ETON
XYZ Axis drive way
High-end magnetic linear motor + servo motor
feeding way
electric feeder with double motor.

Digital camera SMT Mounting Machine LED Strip Chip Pick And Place Machine

SMT line solution

ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line.

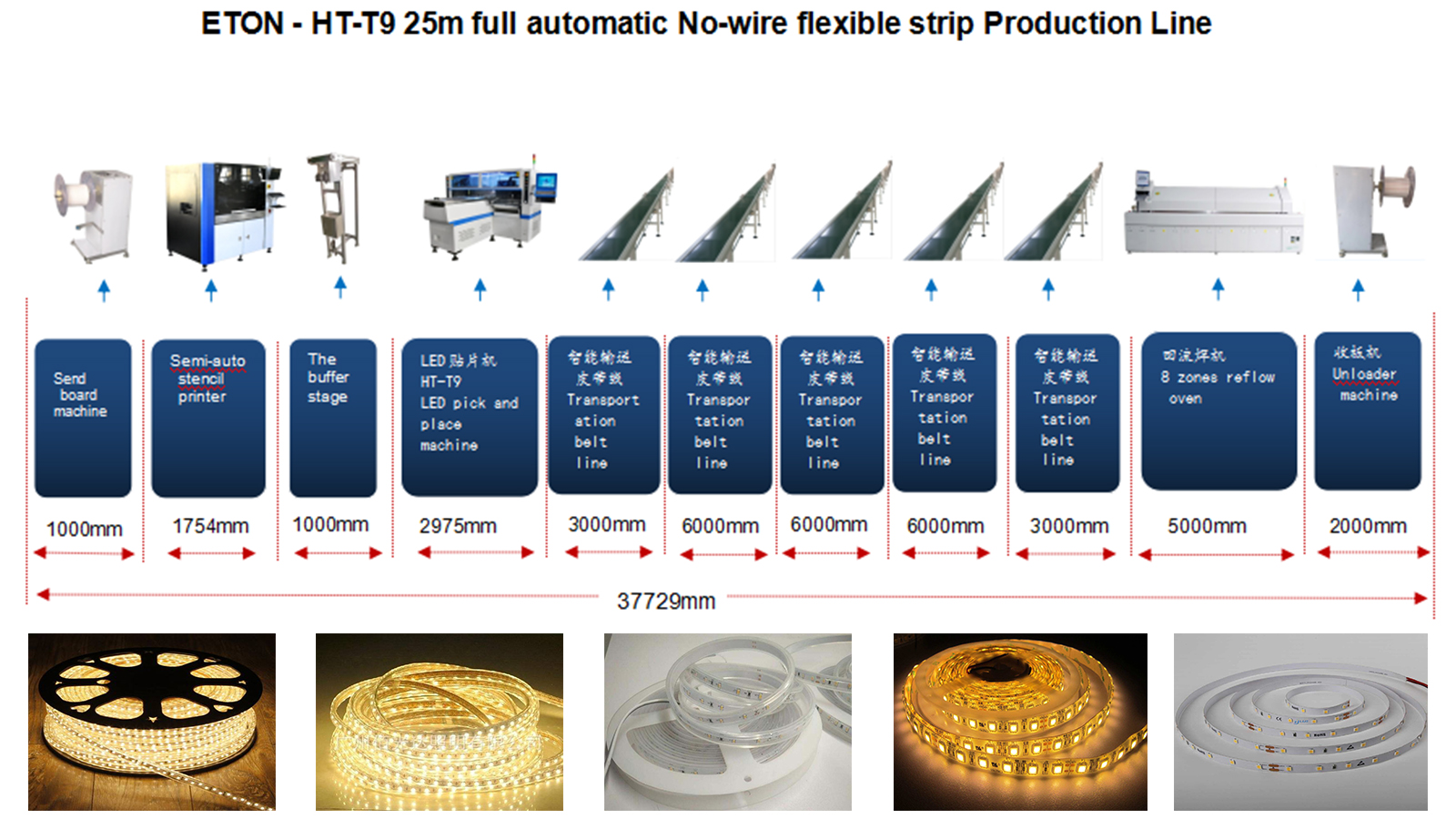

Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:

Digital camera SMT Mounting Machine LED Strip Chip Pick And Place Machine

Related SMT Machine

Digital camera SMT Mounting Machine LED Strip Chip Pick And Place Machine

FAQ

Q1:The products you are advertising are in stock?

A: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .

Q2:How many hours does the machine can operated per day?

A:Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.

Q3:How can I buy this machine from you?
A: A. Consult us about this product on line or by e-mail
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F.Send your order by air or by sea.
