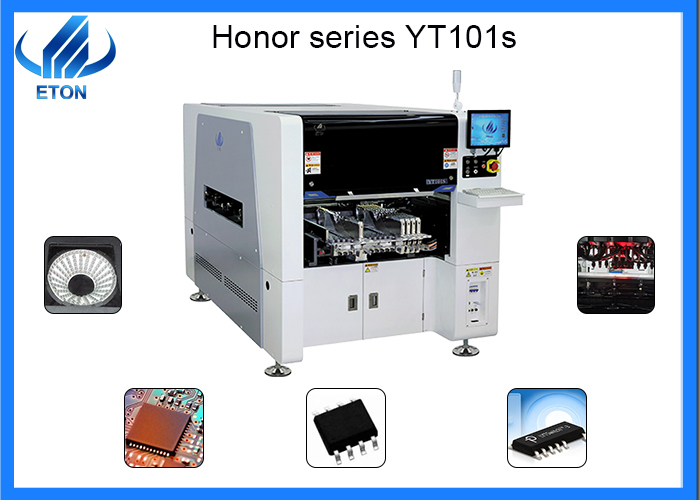

The newest chip mounter pick and place machine in led light industry for IC component
Product Details
Model Number:YT101s
Dimension:2154*1376*1762mm
Component range:0201-40 *40mm package and IC etc.
PCB size:MAX:500*350mm/MIN:50*50mm
PCB thickness:0.5-4.5mm
No.of camera:2 sets
Heads:10pcs
Weight:1700kg
Speed:40000CPH
Power:380AC 50HZ
Feeder:16pcs
Core Components:Motor
Brand:ETON
IC components
Definition
IC (Integrated Circuit) is a large number of microelectronic components (transistors, resistors, capacitors, etc.) formed by the Integrated Circuit on a plastic substrate, into a chip. Today almost all the chips you see can be called IC chips.
Detection of Common Sense
1. to ensure that the quality of welding, welding firm indeed, solder accumulation, porosity easy to cause virtual welding. Welding time generally not more than 3 seconds, carefully check the integrated circuit has been welded, ohmmeter measurement between the pins short circuit, make sure that no solder adhesion phenomenon and then connect the power supply.
2. The internal resistance of the measuring instrument should be large. When measuring the DC voltage of the pins of the integrated circuit, the multi-meter with the internal resistance of the meter head larger than 20K ω/V should be selected, otherwise, the measuring error of some pins voltage will be large.
3. Pay attention to the heat dissipation of power integrated circuits. Power integrated circuits should have good heat dissipation and should not be allowed to work at high power without a radiator.
FAQ
Q: Can I visit the production site of your machines in India?
A: I have to ask my clients. After all, this is our customer's factory. We can't make decisions for my clients.I think that You wouldn't want your competitors to visit your manufacturing site. please understand.
Q: Do you have any customers in India? How many machines are there in India?
A: Yes, We have many big clients in India, Such as RK, SURYA, Fiem, Calcom, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.
|
|
