SMT placement machine can apply to all sorts of LED lights and LED lens

Multi- function SMT mounting machine can apply to all sorts of LED lights producing

Product Description

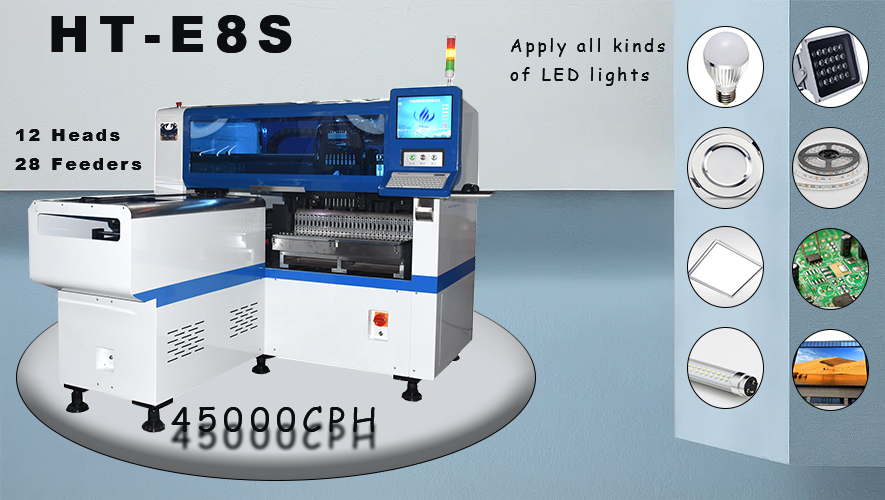

HT-E8S-1200 pick and place machine Advantage:

Single module magnetic linear motor Multi-functional pick and place machine.

1. Application:

1) Widely application: LED bulb,DOB bulb, LED tube, power drivers,down lights, household appliance etc.,with complete functions. Can meet the requirements of customers to produce a variety of products.

Notes: suitable for all boards on the market,Max PCB size:1200*500mm;can be customized.

2) Mounting components: It is applicable to the wider range of components, and can be mounted with resistors, capacitors, IC, bridge rectifiers, inductance, terminals, diodes, transistors, large-capacitance transformers, shaped components. High precision, can mount 0402 components.

2. Feature / Exclusive patented technology:

1) Electronic feeder feeding system: Electric feeder with double motor to ensure more stable and accurate feeding.

2) Camera recognition system: 2pcs camera,vision camera, flight identification, Mark automatic correction.ensure accurate mounting and high precision.

3) Non-stop material re-loading function,ensure high speed, increase productivity.

4) Auto-optimization after coordinates generated. to ensure high mounting precision.

5) Automatic replenishment: If there is material missing or throwing,can fully-automatic material replenishing to save labor.

6) The head structure is independent research and development by ETON, the structure and material are unique. and the mounting height is adjustable,up to 20mm.It can be applied to many high DOB components and has wider range of applications.

7) The X/Y axis uses high-end magnetic linear motor, which has higher accuracy and faster speed. Each head of Z axis is independently controlled by servo motor to ensure accurate mounting and high speed.

8) Software:Independent research and development by ETON, free upgrade whole lifetime, saving costs.

9) Feeders: Electric feeder with double motor, to ensure more stable and accurate feeding. Also improve the mounting speed.

10) Mechanical part: Most of mechanical part are manufactured by ETON, with controllable quality and strong manufacturing capabilities. Cause ETON is leading manufacturer of SMT machine in China, over 10 years experience in SMT machine, own industry park over 50000 square meters.

11) Total weight:1700KG, the machine body is more stable.

12) Support customization: OEM/ODM. such as: 600*500mm can be customized.

Parameter

Package

We usually use vacuum wooden cases to pack the products. Vacuum can be very shock proof and ensure the integrity of the products. If you have special requirements for packaging, we can also realize it for you.

FAQ

Q1: What is the optimal capacity of your products?

A:The actual product of the mounter in this industry is conservatively estimated to be 60% of the optimal production capacity, but it all depends on the product you want to do, PCB design, component type, component quantity, etc

Q2: Why is your product unique?

A: Because our patented technology, practical invention and software copyright are unique, we have obvious advantages in the market.
