Multifunctional type for LED light 90000 capacity placement mounter
Product description
E8D-1200 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.
- Dual system, dual module multifunctional mounter to produce two different products at the same time.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Exclusive Patented Technology:
- Electronic feeder feeding system.
- Vision alignment flight identification, Mark correction.
- Non- stop material re-loading function.
- Auto-optimization after coordinates generated, etc.
Machine parameter
| Model | HT-E8D-1200 |
| Dimension | 3150mm*2250mm*1650mm |
| Total weight | 2500kg |
| PCB length width | Max:1200*300mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting speed | 90000CPH |
| No. of feeders station | 48PCS single module |
| No. of head | 24 PCS single module |

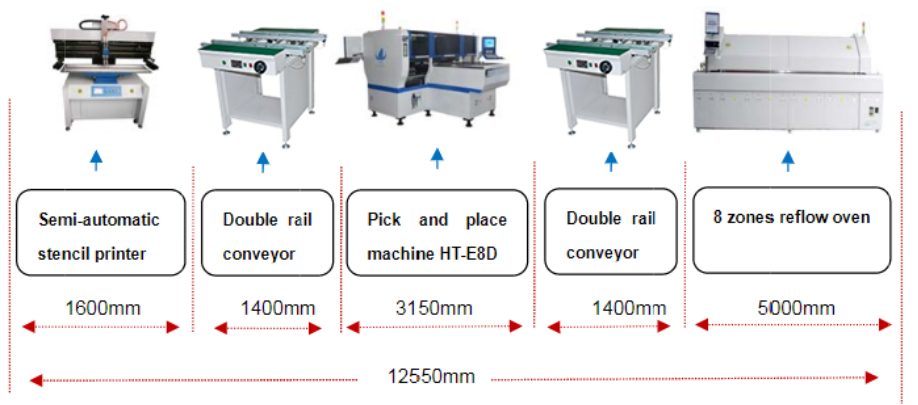

SMT Line solution
The equipment required for the semi-automatic production line includes:
- Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
- Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
- Reflow oven: melting the solder paste to make it adhere to the mounting components;
- Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
