Lighting making machine 40000 CPH YT 101SSMT pick and place machine
Features
1.High speed and intelligent, ultra performance
adopt high speed multi modular head, apply to ultra small chip 0201-40*40mm large chip, wider component range
improve recognition performance size up to 40*40mm, apply to BGA 0R CSP etc.
each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
optimum placement speed reach 40000 CPH.
2. flexible production and high reliability
(1)fixed flight vision recognition camera(option)
(2)intelligent and smart double head tape feeder
(3)brand new self-developed high precision placement head
(4)combine high accuracy, mark recognition camera with fixed flight vision camera, ensure placement accuracy
(5)the placement head adopt independent vacuum detection improve placement performance
(6)off-line programming, save time of changeover cycle
(7)software AI intelligent learning function and automatic optimization function
Parameter
| model | YT 101S |
| PCB size | MAX size: 500*350mm MIN size: 50*50mm |
| PCB thickness | 0.5-4.5mm |
| X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor |
| No. Of feeder station | Station:16 pcs, tape reel packages 32 pcs |
| No. Of heads | 10 pcs |
| Feeding way | Intelligent double head feeder |
| PCB clamping | Cylinder clamping, track width adjustable |
| rail | Rail q is fixed |
| system | Windows 7 |
| software | R&D independently |
| Production management MES system | Customized(option) |
| Off-line programming | available |
| No. Of camera | 2 set (digital camera) |
| Repeat precision | ±0.02mm |
| Mounting height | ≦20mm |
| Mounting speed | 40000 CPH(optimum speed) |
| Components range | Min 0201-4040mm tape reel packages and IC tray feeder etc |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set |

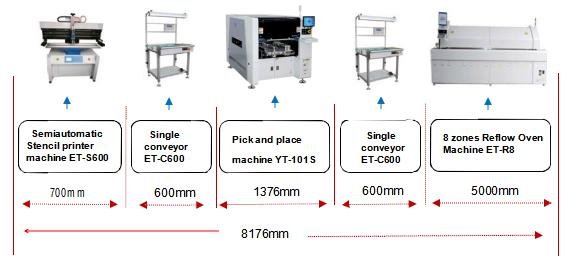

The production line and peripheral equipment

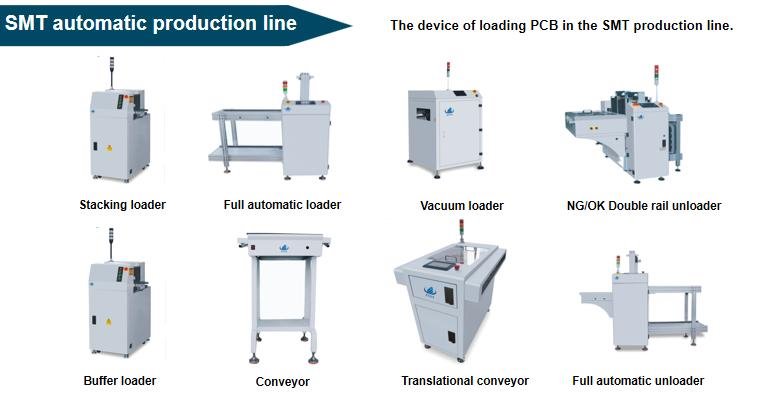

We provide the whole SMT production line: semi-automatic and full-automatic.the peripheral equipment includes loader, conveyor, reflow oven, translational conveyor and so on.

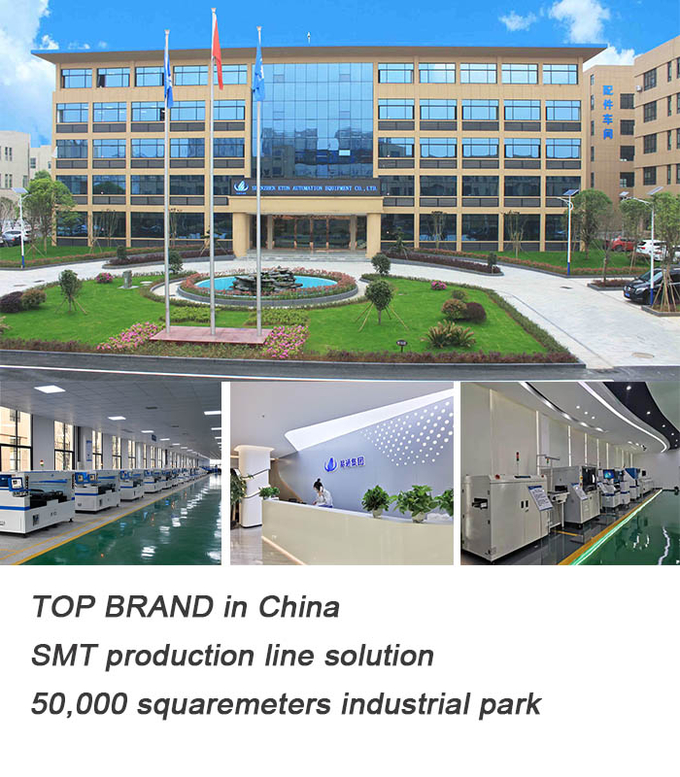

Company advantages
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. with over 10 years experience in SMT machine. Rich experience and professional in SMT machine. ETON is a manufacturing and process solution provider focusing on R&D, Production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The machine update and update, has a high stability.
ETON advantage: Strong manufacturing capabilities,Product,Patents and Honor,Five star service,Large market share,Exhibition,Packing and Delivery
Certificates
133 invention patents and property technology patents, including We got 9 invention Patents, 112 practical patents, 12 software copyrights.
ETON is leading position in the filed of SMT pick and place machine, aim to “Create a well-known national brand and build a word-class enterprise”.
FAQ:
1.Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
2.Is your software interface in English?
English interface and Chinese interface are both available.
3.This is the first time I use this kind of machine, is it easy to operate?
Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
4.Does the price include spare parts(nozzle and feeder)?
Different client has different requirements on spare parts, it is not fair to clients to add In equivalent price for spare parts. So we don’t add the spare parts cost on price. And price is only for machine .
