Special price magnetic linear motor LED lighting Single module SMT machine
Machine main features
- Single module magnetic linear motor multifunctional pick and place machine
- Mounting components: LED Chip, Capacitor, Resistor, Lens, IC, Shaped components, etc.
- Support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, High accurate and high-speed feeding.
- High precision vision alignment flight identification, auto-optimization after coordinates generated, etc
- Option: Fix flight vision recognition camera.
Machine main parameter
| Model | YT-10S |
| PCB size | Max size: 500*350 mm Min size: 50*50 mm |
| PCB thickness | 0.5-4.5 mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| Software | R&D independently |
| Production management MES system | Customized (Option) |
| Off-line programming | Available |
| Camera | 2 sets of digital camera, Vision for the flight identification, Mark correction |
| Repeat precision | ±0.02 mm |
| Mounting height | ≦15 mm |
| Optimal speed | 45000 CPH |
| Component range | Min 0201~40*40 mm packages and IC etc. |
| Position mode | Optical |
| No.of heads | 10 PCS |
| Feeding way | Electric feeder with double motor |
Machine application
SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.

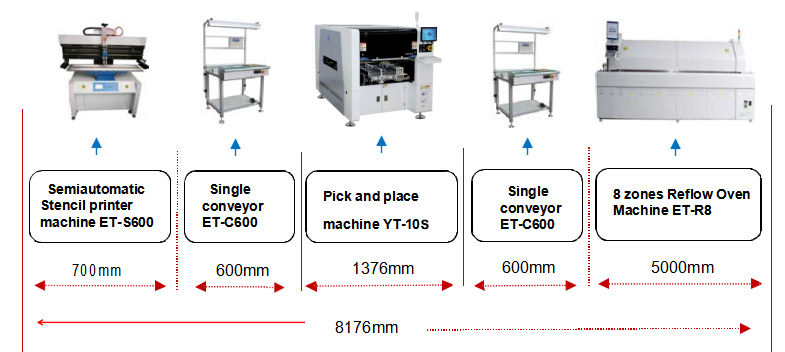

The equipment required for the semi-automatic production line includes:
- Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
- Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
- Reflow oven: melting the solder paste to make it adhere to the mounting components;
- Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
