ETON HT-E8D-1200 LED Chip SMD Mounting Machine Pick And Place Machine SMT Line

  • 1
  • 2
  • 3

Brand Name : ETON

Model Number : HT-E8D-1200

Certification : CE,SIRA,CCC,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : USD 50000~80000/sets

Payment Terms : L/C, T/T

Supply Ability : 50 sets per mouth

Delivery Time : 30 days after deposit

Packaging Details : Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

name : pick and place machine

Feeder station : 28 PCS

Visual camera : 2 sets of imported camera

Head : 12 heads

PCB size : 1200*500mm

Mounting height : <18mm

drive way : high-end magnetic linear motor +servo motor

model : HT-E8D-1200

Total weight : 2000kg

Mounting speed : 90000CPH

Contact Now

High Quality smd led mounting machine visual camera for copper string light

Features of SMT machine

0402,led chips,capacitors,resistors,shaped components,etc

Optimal speed:90000CPH

One-station Casting Base

Magnetic Linear Motor & Servo motor

Non-stop material re-loading function

Auto-optimization after coordinates generated

SMT machine master drawing

ETON HT-E8D-1200 LED Chip SMD Mounting Machine Pick And Place Machine SMT Line

HARDWARE FEATURES OF SMT MACHINE HT-E8D

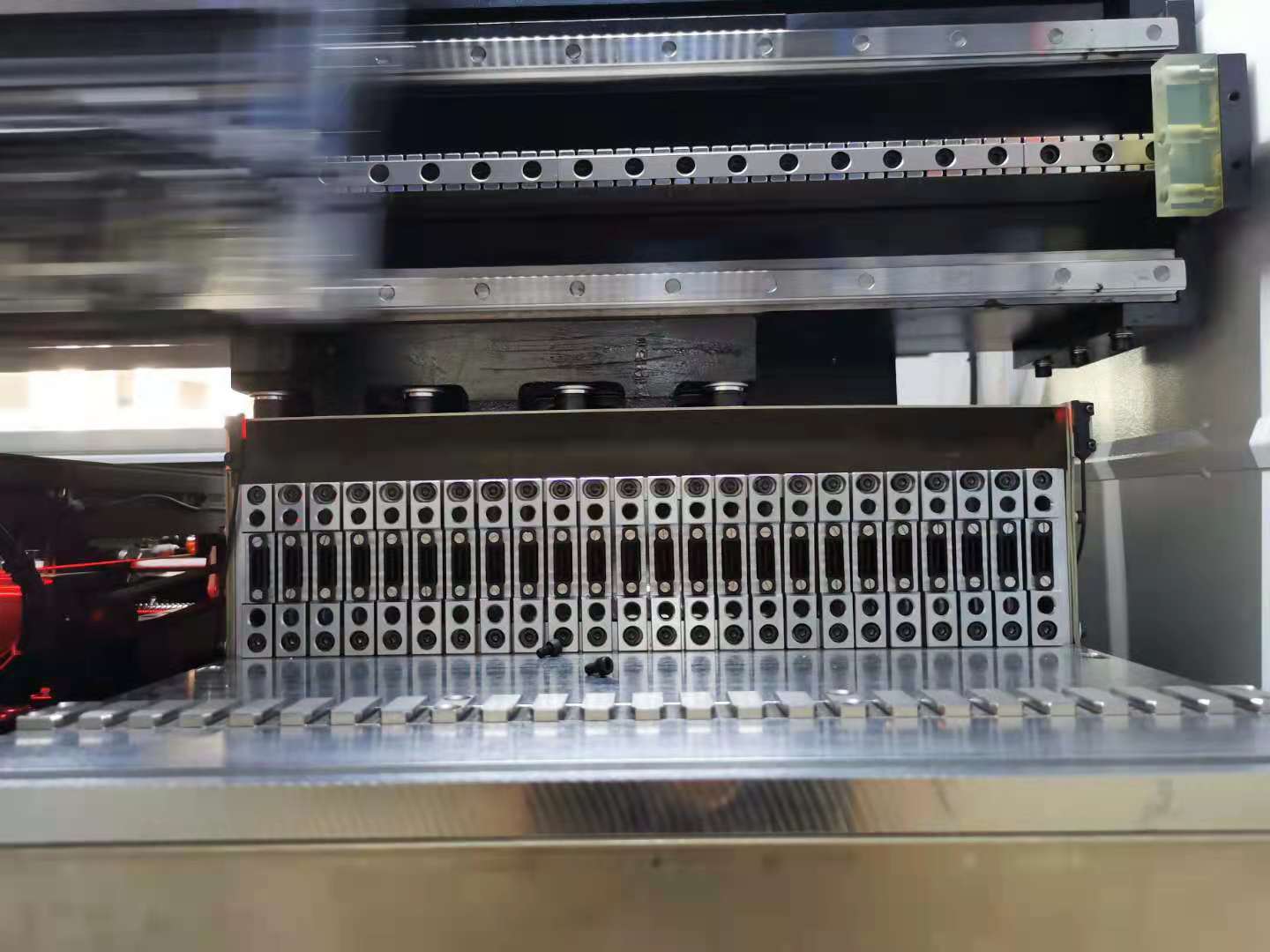

1. Strong and Flexble feeder Capacility
• Double Mounting model for Pick & Place Machine, total can equipped with48 slots (8mm feeder) to meet a wide variety of components production.

• Supporting the use of tray plate and vibration feeder.

ETON HT-E8D-1200 LED Chip SMD Mounting Machine Pick And Place Machine SMT Line

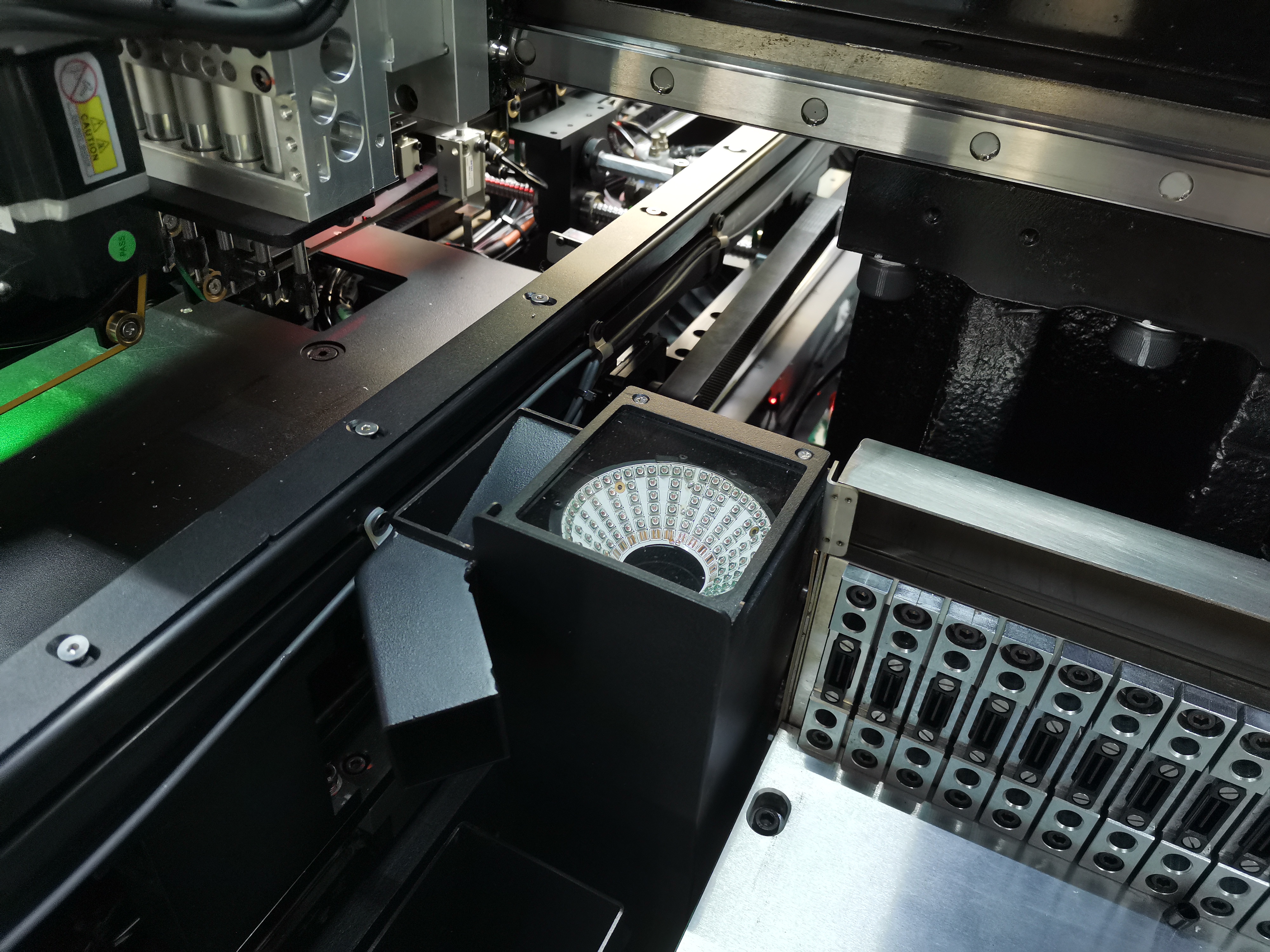

2. High-quality Visual system

• 4 sets of Professional fling indenditify Camera, it is shock- resistance and guarantees high-quality component recognition.

• Mark correction Camera

ETON HT-E8D-1200 LED Chip SMD Mounting Machine Pick And Place Machine SMT Line

Technical Parameter

Model HT-E8D-1200 HT-E8D-600
PCB size Max:1200*300mm min:100*100mm Max:600*300mm min:100*100mm
PCB clamping Adjustable pressure pneumatic
Mounting speed Optimal speed 90000CPH
Power & power consumption 380V AC 50HZ 8KW
Feeder station 48PCS
Head 24PCS
GAS consumption 0.4~0.6mpa
Transmission direction Both direction(Option)
X,Y,Z axis drive way High end magnetic linear motor +servo motor

Contact Us

ETON HT-E8D-1200 LED Chip SMD Mounting Machine Pick And Place Machine SMT Line
