Multi-Functional Visual Camera Sevro Motor Placement Machine With 45000CPH
Product description

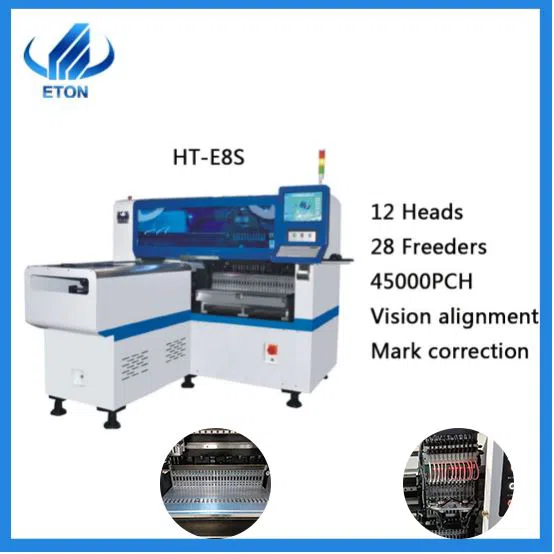

HT-E8S is a multi-function placement machine that can largely satisfy the products placed by most
customers.It is a key and complex device in the entire SMI and production.
Technical Parameter
| Dimension | 2550*1650*1550mm |
| Weight | 1700kg |
| PCB length width | 1200*500mm 100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | pneumatic |
| Mounting mode | group picking and separately placing,separately picking and separately placing |
| NO.of camera | 2 PCS |
| Mounting precision | ±0.04mm |
| Mounting speed | CPH |
| NO.of feeders station | 64PCS |
Product application
Mounted products include various drivers, power supplies, circuit boards, lenses, linear bulbs, home
appliance control panels, display screens, DOB, panel lights, light tubes, light strips, street lights, spotlights,
solar lights, bulbs, etc.
The Machine's Features
- The machine is easy to operate and generally only takes five days. We will provide free online or offline teaching.
- The beam adopts linear guide and grating ruler. Make the head do high-precision reciprocating motion, with high detection accuracy and fast response speed.
- 28 feeders can be placed, which can greatly satisfy the number of components placed by customers.Conducion to faster product output, better and more convenient.
Main process:
Step 1Stencil printer: Printing solder paste on PCB
Step 2 Pick and place machine: Mounting components on PCB
Step 3 Reflow oven:Heating the solder paste with PCB to welding the components on PCB
Exhibition:
ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Client Country
Our products not only sell well in China, but also exported to more than 20 overseas countries, such as
South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.Some listed companies
including Changfang, Wanrun Technology, Mulinsen, Linghang, Century Classic, Zhuhai Taobo, Huizhou
Guozhan Electronics, etc.
FAQ
1. Why we choose your company?
A:ETON is the No. 1 brand of placement machines in China, enjoys a high reputation at home and abroad, has extensive influence, and is a leader in China's placement machine industry.
2. Which service you can offer for me?
-
The warranty period of the whole machine is 1 year.
-
Visit customers regularly and gather information .
-
Provide latest information about technology and equipment.
3. Can I visit your clients company?
A:If you want to visit our customer's factory, I will try my best to help you get the opportunity, but
we can't guarantee that the customer will agree.
