SMT pick and place machine
Machine parameter

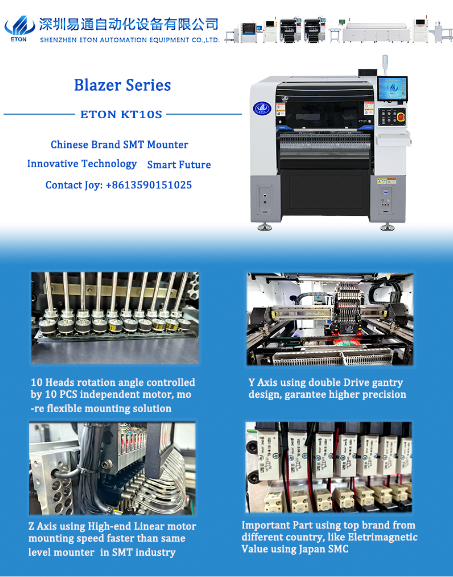

SMT Blazer Series ETON KT10S is the newest mounter model, main machine parameter as fellow showing:
1. Machine heads—KT10S have 10 splines
2. Machine feeder station—52 PCS Feeder station, support customized 104PCS.
3. Machine camera—Mark camera and Fly vision camera is standard , support customized bigger fixed vision camera
4. Machine power—220V, AC, 1.5KW
Machine features
KT10S as the newest model in 2023, here are many important new technology applied to it:
X/Y/Z all using high-end linear motor, we are the firstly supplier who make this in all over the world
Using double gantry drive design for Y Axis, more stable and higher precision
Machine equipped with vacuum sensor design, it is guarantee the machine air supply and reflect quickly
Whole machine mechanical making is whole part, integrated injection, higher cost for making for improve machine quality
FAQ
1. If I already have other brand smt machine, could I add your mounter in my line?
A: Yes, our mounter machine is standard connect, could add with any other brand.
2. What is your feeder control ?
A: We are using double motor eletrical feeder.
3. If I buy your eton machine, how you support us for machine running ?
A: If you buy our machine, then we could sent engineer to your factory for training, also support training in China also
4. Do you have client in Europe?
A:Yes, We have Europe clients.Like Spain, UK,etc
Pallet packaging
Pallet packaging uses rectangular partitions to divide the pallet into equal parts according to the specified cavities, and then the components are loaded into the tray one by one, usually 50 pieces/tray, and then covered with a protective film. The pallets have single-layer, three-layer, ten-layer, twelve-layer, and twenty-four-layer automatic feeding tray feeders. When this packaging method began to be used, it was mainly used to package medium, high, and multi-layer ceramic capacitors with larger shapes. Currently, it is also used to package components such as SOP and QTP with a large number of pins.
Pallet packaging pallets are divided into hard disks and floppy disks. Hard disks are often used to package multi-pin, fine-pitch QTP components so that the lead wires of the package are not easily deformed; floppy disks are used to package ordinary special-shaped chip components.
ETON KT10S support customized pallet tray feeding!
