High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
Production features
HT-F9:Dual arm magnetic linear LED high speed pick and place machine.
Mounting components: led3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers.
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
Dual arm four module, 17 nozzles for each part,total 68 head.Producing with 4 types materials at the same time with high capacity, available for board with any proportion of Led chip and resistor.
Mounting speed reached 200000 to 250000CPH.
Machine parameter
| Model | HT-F9 |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to take and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 200000~250000 CPH |
| Power consumption | 6KW |
| No. Of feeders station | 68 PCS |
| No. Of head | 68 PCS |

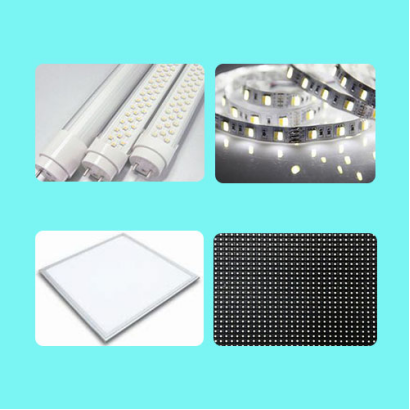

Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 30 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Exhibition
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including domestic exhibitions and foreign exhibitions(except the epidemic period).Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Service
We have first-class after-sales service
We have offices in Egypt, Turkey, India and other countries
If you buy our machine, we will provide a one-year warranty period, and any damaged parts within the warranty period will be replaced free of charge.
We will send engineers to install the machine for free, train employees, and help you to produce smoothly, no matter which country you are in.
We will provide free software upgrades for life, save this part of your expenses in the future, and ensure that your production has always been at the forefront of the industry.
FAQ
Q:How long is the time of delivery?
Generally, the test delivery period is one month.
Q:If my order is very urgent, how long you can proceed?
We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.
Q: what can you buy from us?
Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine
Q: why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of smt machine with more than 10 years with good quality and reputation.We have rich experience in helping client to start new factory and new line."Professional,high-effective,cost-saving" are our advantages.
